KTCS-M LTran-CX

CBTC proven in

unattended commercial service.

Moving-block train control system for urban rail and light rail, supporting fully unattended operation (GoA 4).

Talk to our rail team
GoA 4
Fully unattended operation grade
90s
Design headway (max speed 60 km/h)
±35 cm
Stopping accuracy
SIL 4
Onboard ATP/ATO, wayside ATP and interlocking

01

What urban rail operators need

01
More trains on the
same track

Moving block safely narrows the gap between trains, and the system is designed for a 90-second headway at up to 60 km/h.

02
Safe unattended operation

Onboard ATP/ATO handles speed supervision, automatic driving and precise stopping. GoA 4 unattended operation is also supported.

03
Modernize without closing the line

A staged migration lets legacy and CBTC trains share the track, so passenger service continues during the upgrade.

04
Less trackside equipment

Onboard sensors detect train position from wayside position tags (transponders) and exchange it over radio.

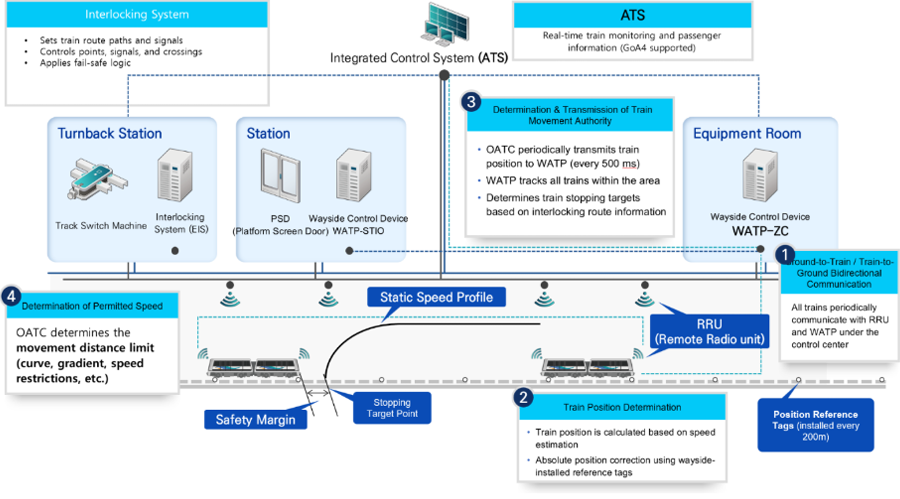

02 · SYSTEM CONFIGURATION

Each train reports where it is. The wayside tells it how far it may go.

Movement authority is recalculated continuously, so the safe distance moves forward as the train ahead advances.

CONTROL CENTER
ATS · Automatic Train Supervision

Timetable, routing, regulation and operator displays

Commands down, train status up

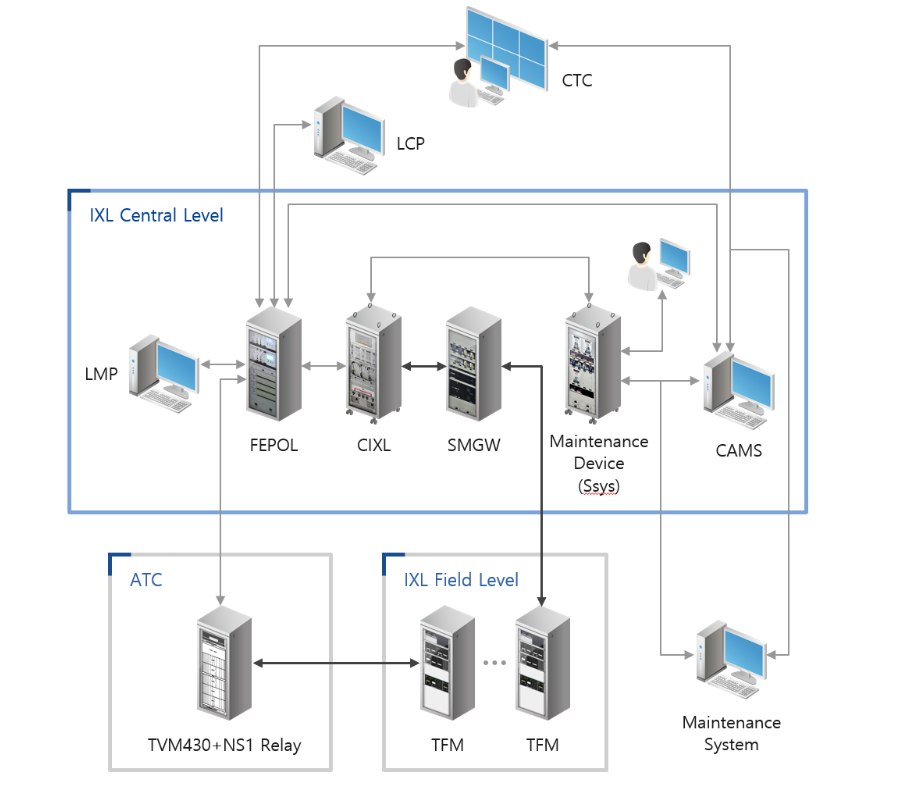

WAYSIDE
Wayside ATP SIL 4

Tracks every train and grants movement authority, 10 to 40 trains per unit

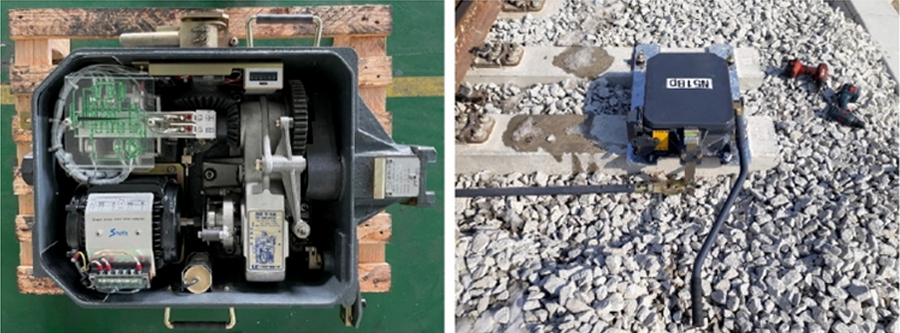

Electronic interlocking SIL 4

Interlocks and controls points and signals according to the route

Position report up, movement authority down, over LTE-R or Wi-Fi

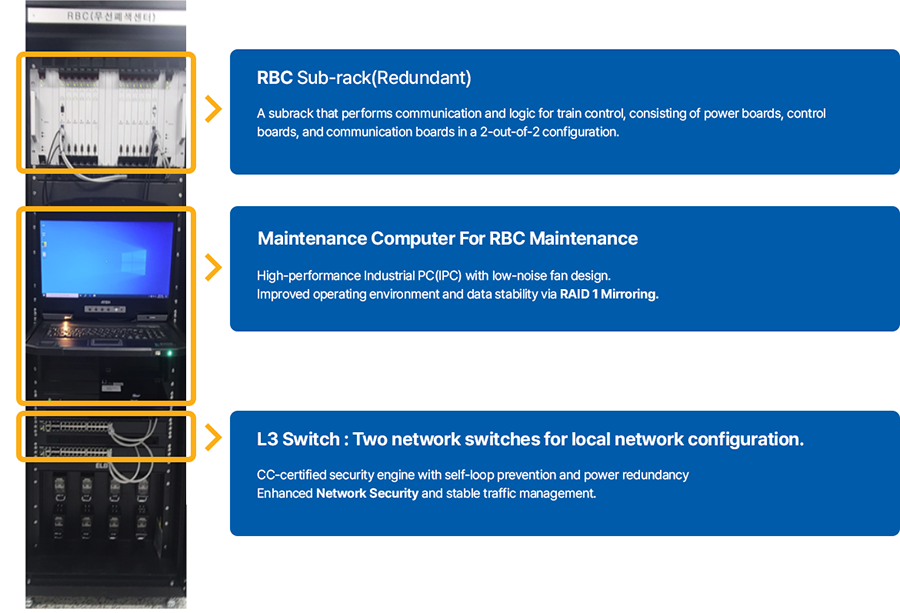

ONBOARD
Onboard ATP/ATO SIL 4

Speed supervision, automatic driving and precise stopping

03 · PERFORMANCE

Performance specifications

ACCURACY

  • Stopping accuracy

    ±35 cm (±13.8 in)

  • Rollback detection

    2 m or less (6.6 ft)

  • Train position (ATP)

    ±5 to ±10 m (±16.4 to ±32.8 ft)

  • Speed measurement

    ±3 km/h (±1.9 mph)

  • Zero-speed detection

    3 km/h for 2 s (1.9 mph)

SYSTEM AND SAFETY

  • Message latency, each direction

    0.5 s or less

  • Trains per wayside ATP

    10 to 40

  • Automation grade

    GoA 4, moving block

  • Safety integrity

    SIL 4, generic (GA) and specific application (SA)

  • Standard

    KRS SG 0069 (ref. IEEE 1474, ETCS)

04 · REFERENCES

From system validation to commercial service

CBTC (KTCS-M)
Sillim Line, Seoul
Client

Seoul Metropolitan Government

Line

11 stations, rubber-tired LRT

  • Electronic interlocking, wayside and onboard ATP, ATS
  • Moving block and GoA 4 unattended operation, dual-band radio at 2.4 and 5 GHz, tag-based train positioning
  • SIL 4 specific application (SA) certification
CBTC (KTCS-M)
Yangsan Line, Busan–Yangsan
Client

Busan Transportation Corporation

Line

Nopo to Bukjeong, 7 stations

  • Electronic interlocking, wayside and onboard ATP, ATS
  • Moving block and GoA 4 unattended operation, LTE-R communication, tag-based train positioning
  • SIL 4 specific application (SA) certification
National R&D
Daebul Test Line
Client

Korea Railroad Research Institute

Line

Development and certification

  • Unattended running and interoperability testing between suppliers
  • SIL 4 generic application (GA) certification
  • Results fed into KRS SG 0069, the national CBTC standard
BUILDING TRUST, MOVING FIRST.

Planning a new CBTC line or an upgrade?

Our rail team can share the CBTC capability brief, our migration approach and reference data for your project.

Talk to our rail team Request the CBTC brief
